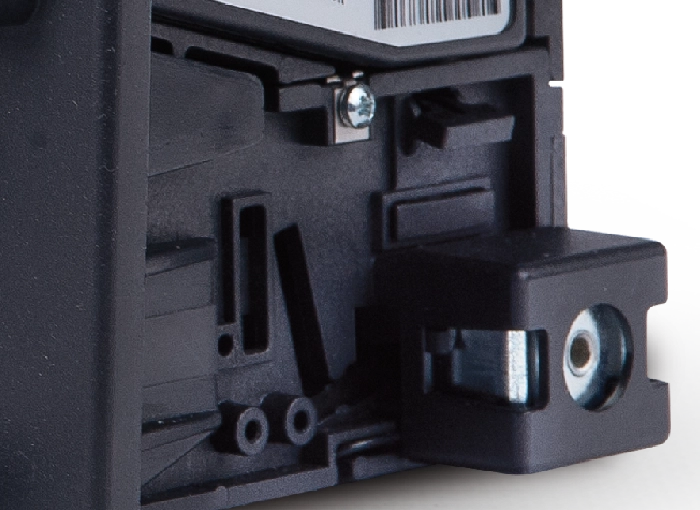

Anti-fraud system

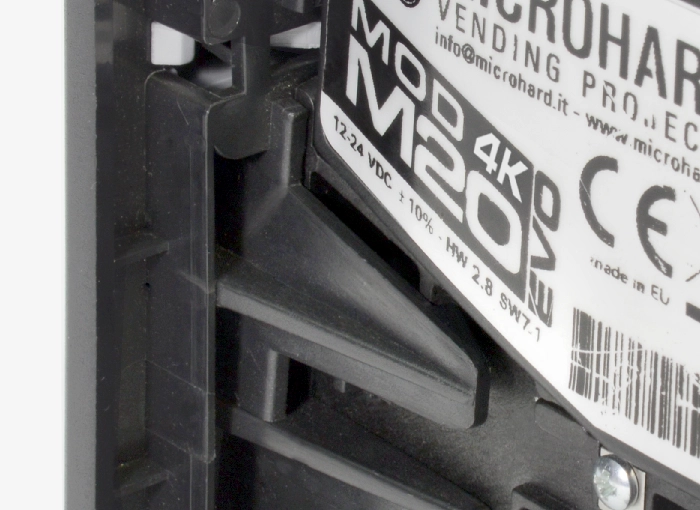

Bezel reinforcement to optimize fastening

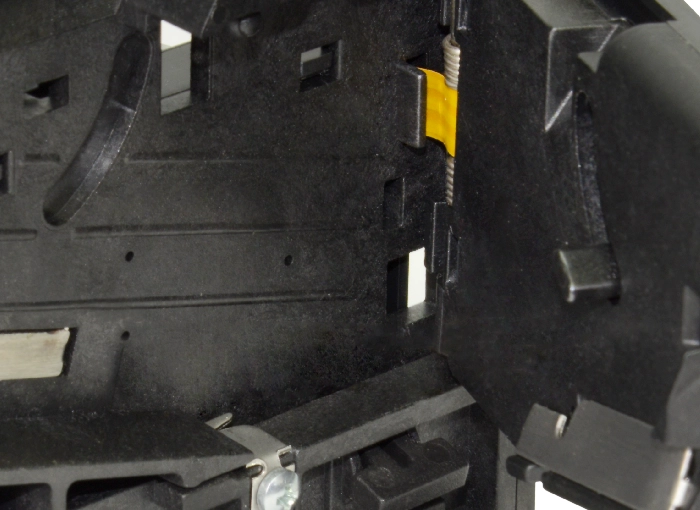

Wiring protection tab

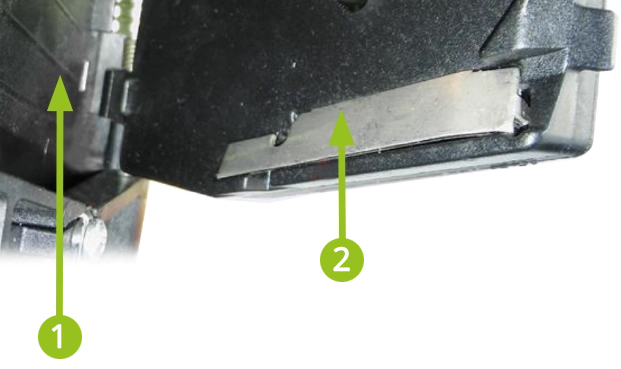

1: non-stick channel
2: steel stop
Acceptance:
Up to 16 different unique coins or tokens, ranging from 16mm to 32mm in diameter, and from 1 to 3.2mm thickness
Security:
• Active: with double optical sensors controlling coin flow/direction.
• Passive: triple security with stainless steel wirecutter, invasive wire control and coin blocking lever
Sensors:
• Optical: 3 pairs of optic sensors for measuring coin diameter and thickness.
• Analog: inductive sensors.
• Digital: digital output Hall effect sensors for absolute protection against counterfeit coins.
Materials:
• Main frame: highly durable and highly stable Noril material.
• Coin chute: stainless steel re-enforced coin chute and sensor section, and stainless steel contrast springs.
Speed:
Maximum 3 coins per second.
Power supply:
+12 Vdc and +24 Vdc with standard connectors.
Current:
30mA (300mA in acceptance)
Output signals:
NPN open collector (ULN 2003 A) with maximum 500 mA load.

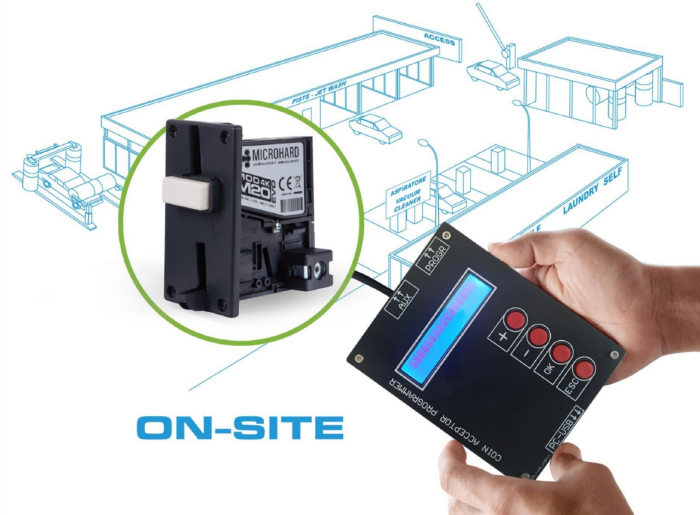

Programming:
Standard PC settings or Self programmable
Assembly angle:
+/- 10° in any direction
Operating temperature:
From -20°C to 70°C.
Autonomous protocol switching from Parallel to ccTalk and vice-versa; optimization of costs and warehouse logistics.
Tropicalized electronic board (suitable for outdoor use).

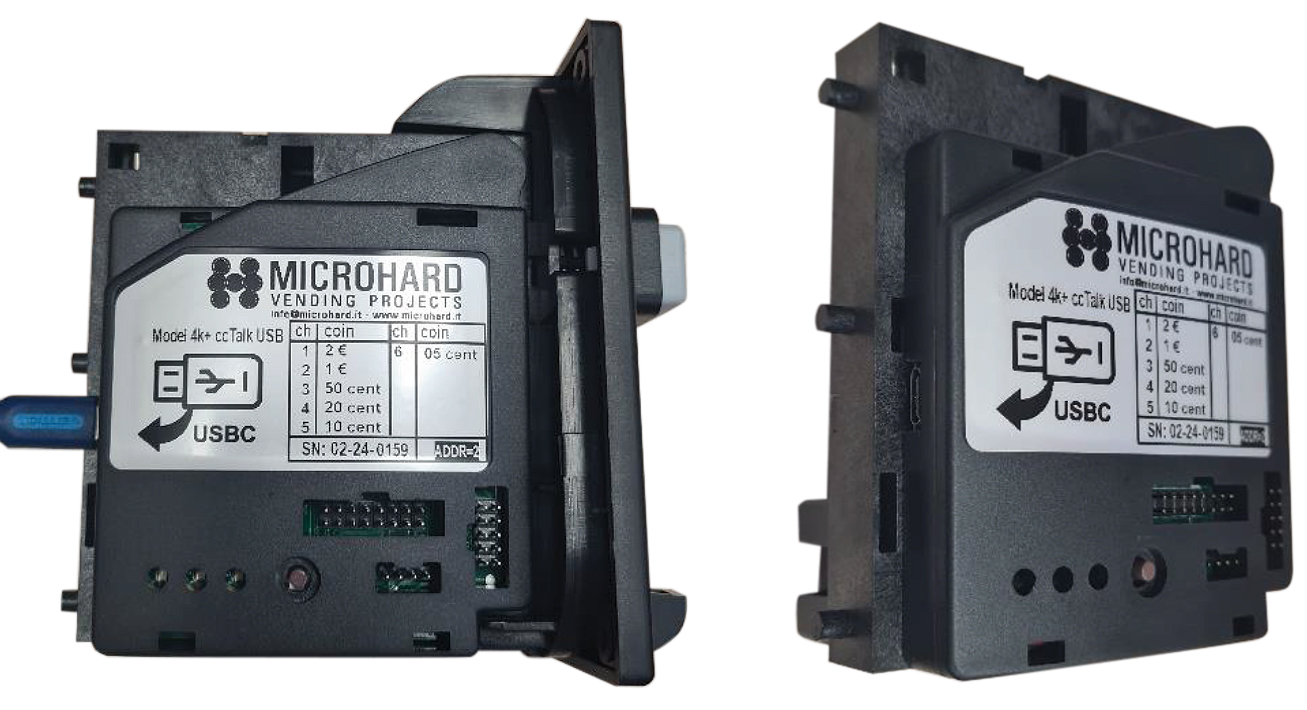

USB-C version
Gettoniera Elettronica
F11 Low front plate for Coin Selector
(for M20)

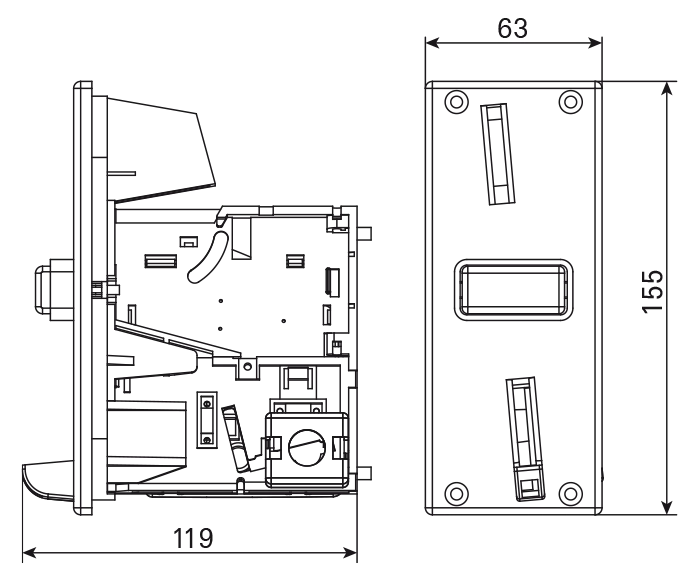

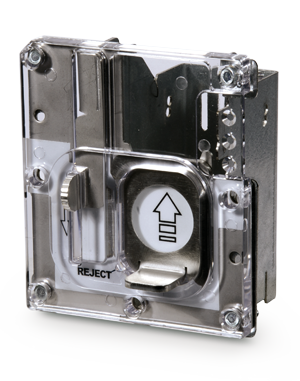

F15 High front plate for Coin Selector
(for M10 and M20)
Mod. M10
Mod. M20
Mod. H10
Mod. P10
Mod. P20

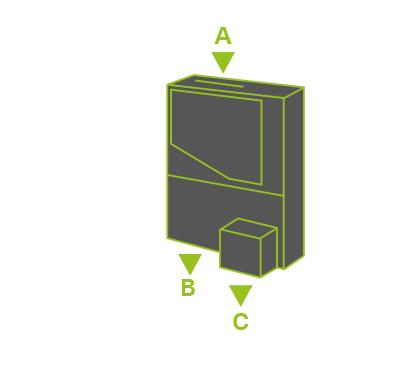

Mod. H10 with "X4" 4-way coin sorter

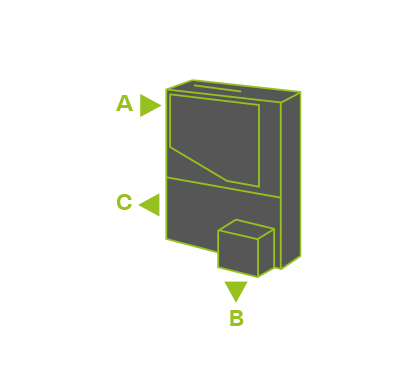

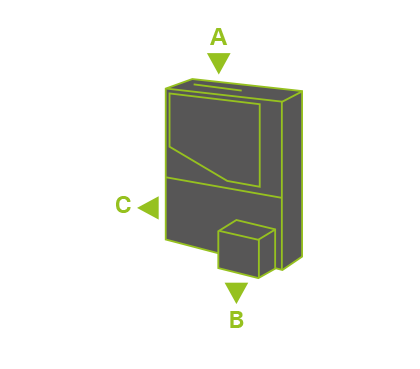

A = Coin entry
B = Accepted coin
C = Rejected coin
The data are not binding and may be subject to change without notice.
