Free-fall electronic coin selector with sorter - Microhard

Free-fall electronic coin selector with sorter

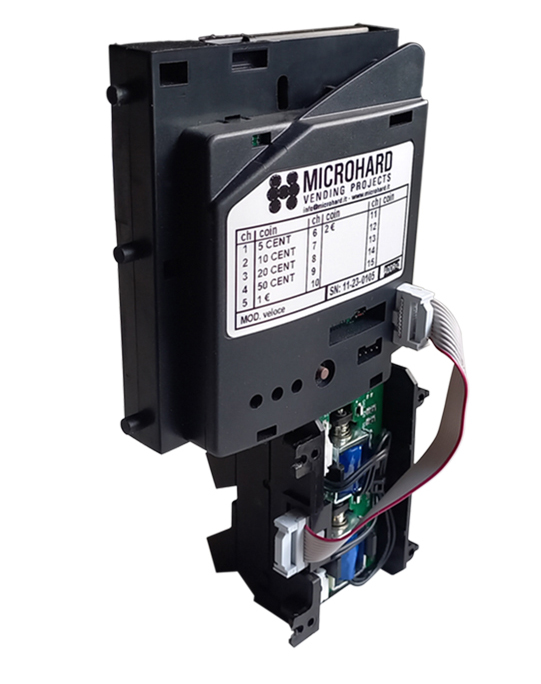

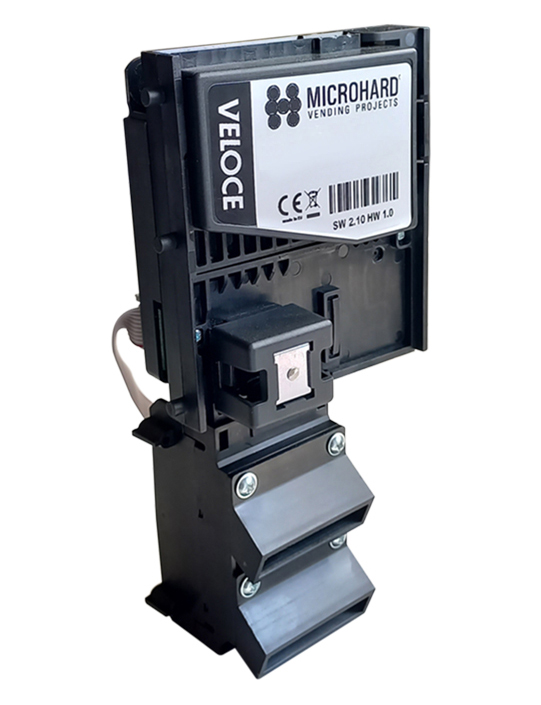

"Veloce" Coin Selector



Description

Thanks to the high number of integrated sensors and the coin value comparison algorithm, this selector achieves an extremely high recognition rate.
Specific mechanical design aspects and operational features prevent the acceptance coil from overheating, even after the consecutive reading of thousands of coins.

  • 16 programmable channels
  • High acceptance speed: up to 10 coins per second
  • Exact diameter measurement thanks to a 12 IR LED matrix system with algorithmic value interpolation (PATENTED)
  • Double digital magnetic sensor
  • Inductive sensor (for uniform alloy readings as each coin position passes)
  • UV light pulse sensors (for recognition/discrimination between copper or nickel coins)
  • Optical control of the cashbox and the coin exit area
  • Standard ccTalk interface
  • Programming and updates via PC software with any USB-ccTalk interface
  • Controls the SV4000 2-way sorter
  • Protocol: ccTalk / ccTalk ACMI (Italian gaming machine law) / parallel via optional adapter on request.






Technical Features

  • Power supply: 12 V DC
  • Operating temperature: from 0° C to 60 °C
  • Coin dimensions: diameter min 14 mm, max 32 mm
  • Coin thickness: from 0.8 to 3.5 mm



Dimensions

"Veloce" Electronic coin selector

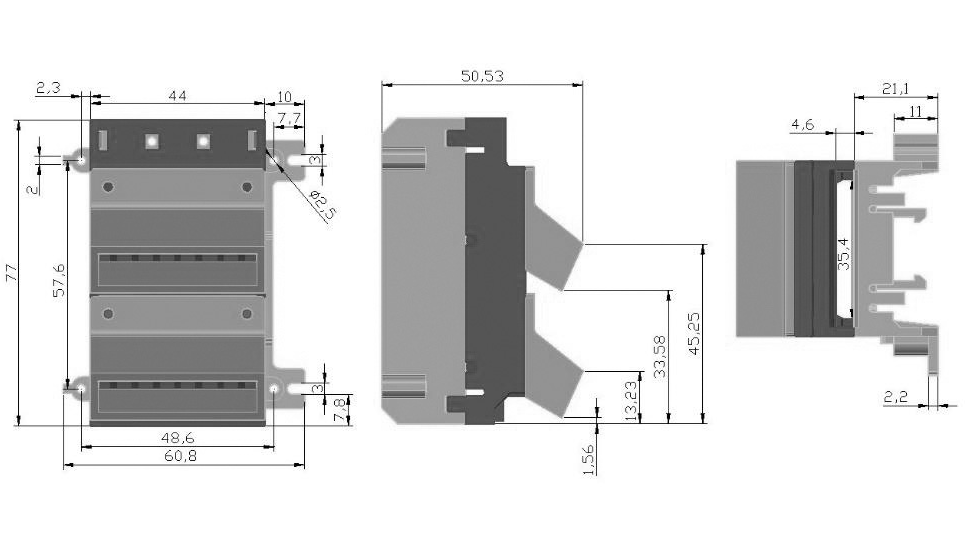

SV4000 Sorter Dimensions



Programming

Programming Handheld for coin selectors.

PC Programming Interface MOD. MH686 (see »)





The data are not binding and may be subject to change without notice.
