Compact coin dispenser

Minihopper X3

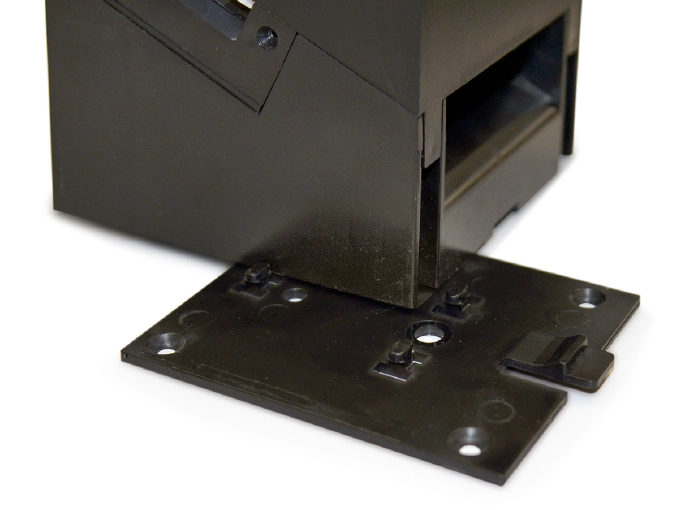

Includes slide

Includes slide

Description

X3™ enriches the range of peripherals offered by Microhard™.
X3™ is among the most compact coin dispensers on the market, featuring programmable dispensing speed and a new AES encrypted security method.
From a mechanical standpoint, 3 formats are available: X3 STD™, X3 EXP.™ with capacity expansion, and X3 Micro™.



Models and dimensions

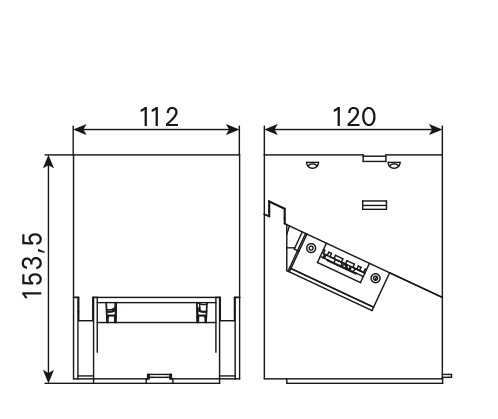

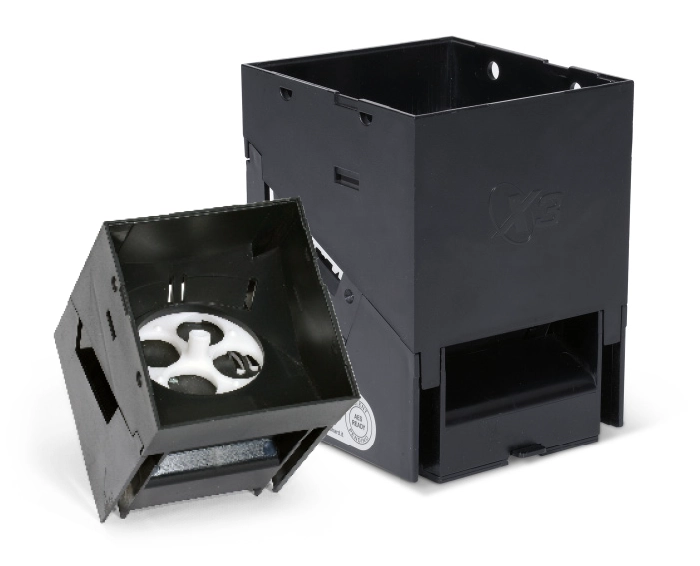

X3 standard; 12V or 24V payment device, parallel or ccTalk.
Capacity: 450 pcs of €1 or equivalent.

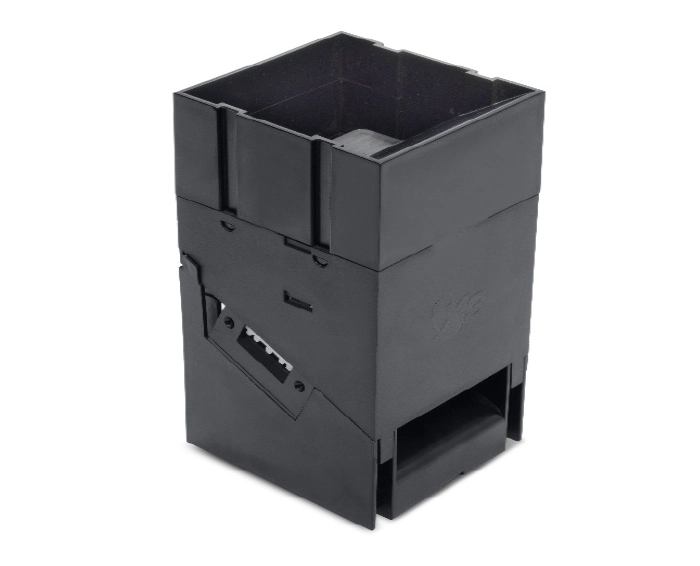

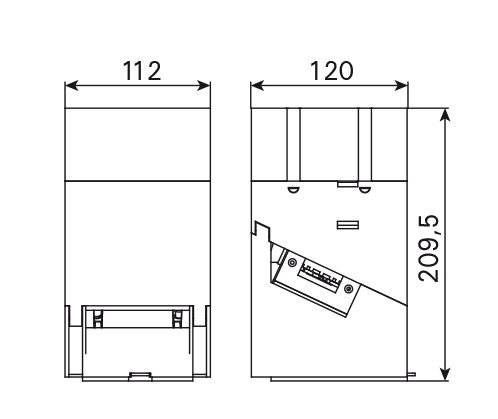

X3 EXP
with expansion; 12V or 24V payment device, parallel or ccTalk. Capacity: 850 pcs of €1 or equivalent.

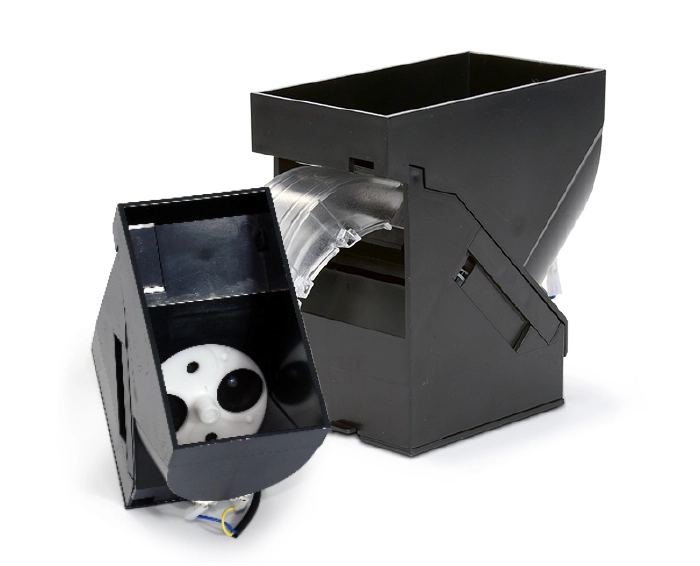

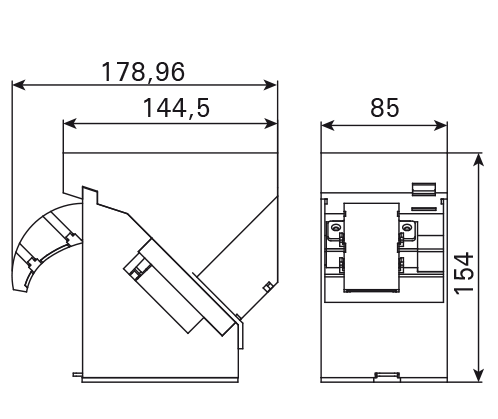

X3 MICRO; 12V or 24V payment device, parallel or ccTalk (without coin conveyor, on request). Capacity: 400 pcs of €1 or equivalent.



Technical specifications

  • Service LED
  • Self-diagnosis with error indication
  • Available in 12 and 24 Vdc
  • Anti-jamming
  • Self-unblocking system
  • Dual coin exit sensor
  • Anti-fraud system against sensor blocking
  • Suitable for coins from 21 to 29 mm in diameter and 1.5 to 3.1 mm in thickness
  • Quick-mounting bracket
  • Adjustable dispensing speed: 3 to 8 coins per second
  • All models available in ccTalk and AES



The data are not binding and may be subject to change without notice.
