Flexi Hopper X5 DPO™ coin dispenser - DYNAMIC PAYOUT - Microhard

Coin dispenser with 3 different values (DYNAMIC PAYOUT)

Flexi Hopper X5 DPO™ MULTI-COIN

Plastic slide included. On request: metal slide

Plastic slide included. On request: metal slide

Description

The only multi-coin recycler/dispenser with “chain-driven” operation. Fast and dynamic settlement of the residual debt, thanks to the cash availability ready in the pre-buffer for dispensing.
Coin exit is available in three different payout configurations and positions; typically 0.50 - 1.00 - 2.00 Euro.
Ideal for use in various applications such as:

chioschi di pagamento
chioschi di pagamento retro

payment kiosks

casse automatiche
casse automatiche retro

automatic pay stations

macchine da gioco
macchine da gioco retro

gaming machines

dispositivi cambia-monete
dispositivi cambia-monete retro

change machines and bill breakers in general


The X5 DPO model is characterized by several unique features:

  • The use of the chain (as an alternative to the disc) makes it very secure, reliable, and durable over time
  • It is secure (access to coins allowed only to authorized personnel via the Coin Block System and optional top lid)
  • Available in both Standard and Reverse versions
  • Fast and dynamic debt settlement guaranteed by 2 “pre-buffers” with coins on standby
  • Payment management configurable in automatic or customized mode
  • Anti-jamming system





Example



0.50 – 1.00 – 2.00 coin output. The Hopper DPO™ dispenses all 3 types indiscriminately. It verifies which coins are being dispensed without pre-selecting them; this maintains maximum dispensing speed.

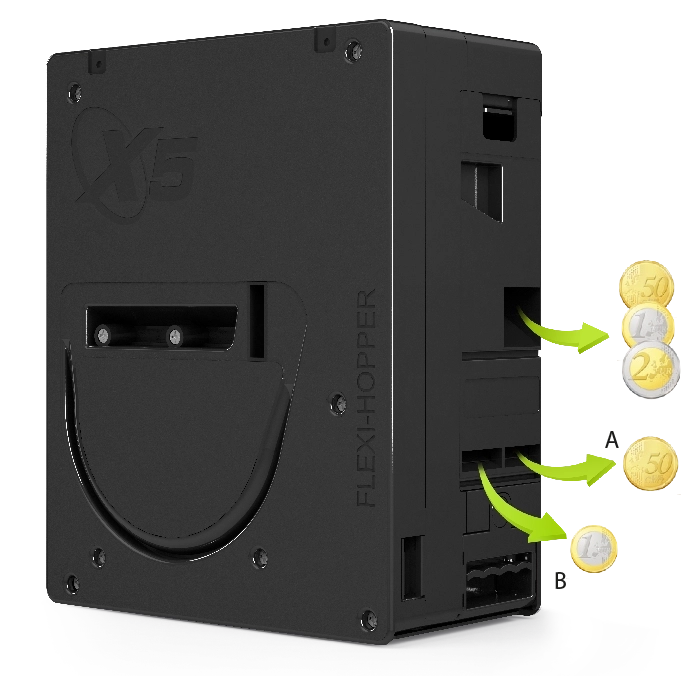

Two pre-cash boxes (A+B) where coins are kept in stand-by. Once the operation (dispensing) is completed, the Hopper DPO™ refills the 2 pre-cash boxes.





Features



• The Hopper DPO™ must dispense €30

• The Hopper DPO™ is loaded with €0.50, €1, and €2 coins.

• The Hopper DPO™ dispenses the various €0.50, €1, and €2 coins indiscriminately, verifying each coin as it exits. This ensures maximum dispensing speed.

• If the Hopper DPO™ needs to dispense €30, for example, once it reaches €28, it dispenses another coin:

In this case, the transaction closes at €30.

Hopper DPO™ dispenses a €1 coin from pre-cash box “B” and settles the remaining balance.

Hopper DPO™ dispenses a €1 coin from pre-cash box “B” + a €0.50 coin from pre-cash box “A” and settles the remaining balance.



The DPO can be configured to dispense a specific amount (e.g. change) by dispensing coins indiscriminately (meaning it identifies each coin as it exits but does not "waste time" searching for a specific denomination). With the support of the 2 pockets, each holding 1 coin in standby, the balance is accurately settled.




Technical specifications

  • Maximum dispensing speed: 3 coins/second
  • Capacity: 1,500 pcs (1 Euro coins)
  • Power supply: 24 Vdc (motor); 12 Vdc (logic)
  • Compact dimensions: 226 x 286 x 126 mm (standard retrofit for market Hoppers)
  • Operation: ccTalk protocol
  • Safety features: low level/full sensors





Dimensions





ON REQUEST

Handle lock

Cover with lock

Cable retainer bracket (on the slide) for better wiring management













The data are not binding and may be subject to change without notice.
